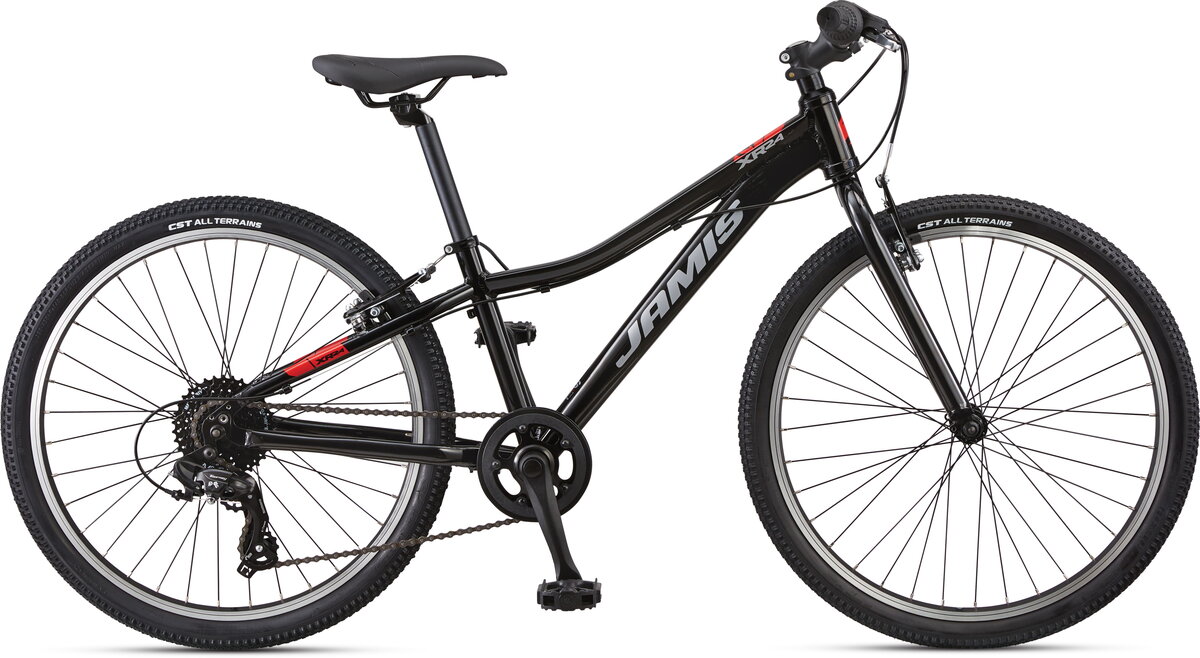

Jamis XR24
$489.99
Details
SIMPLE, FUNCTIONAL, RELIABLE.
Sometimes less is more. With a lightweight aluminum frame, single-chainring drivetrain, and a rigid no-nonsense fork XR24 is just about everything a kid needs for two-wheeled adventures.

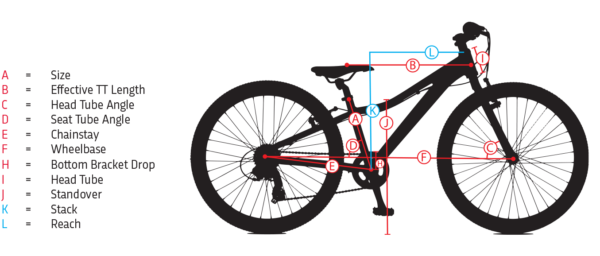

| SIZE | 12” B |
|---|---|
| TT EFFECTIVE | 20.59 / 523 |
| HT ANGLE | 70° |
| ST ANGLE | 72° |
| CHAINSTAY | 16.14 / 410 |
| WHEELBASE | 38.62 / 981 |
| FORK RAKE | 1.77 / 45 |
| BB HEIGHT | 10.28 / 261 |
| HEADTUBE | 3.94 / 100 |
| STANDOVER | 22.09 / 561 |
Specs
| Frame | 6061 aluminum main tubes, zero-stack head tube, over- sized stays, replaceable derailleur hanger |
|---|---|
| Fork | Unicrown, hi-tensile steel, 28.6 steerer |
| Wheels | Alloy 36H black anodized rims with brushed brake tracks, alloy MTB hubs with nutted axles, 14G black electroplated spokes |
| Tires | CST MTB Sport, 24 x 1.95" |
| Bottom Bracket | Sealed cartridge |
| Crankset | Forged alloy crank, 152mm, 32T chainring and protective outer rock-ring |
| Shifters | Shimano RevoShift 35, 7-speed |
| Rear Derailleur | Shimano TY300 rear |
| Cassette/Freewheel | Shimano TZ500 freewheel, 14-28, 7-speed |
| Chain | KMC Z51 |
| Brakes | Alloy linear pull type with Tektro youth specific levers |
| Handlebars | MTB alloy riser, 6 ° sweep x 20mm rise x 580mm wide |
| Tape/Grips | Kraton for Grip Shift |
| Stem | MTB alloy threadless, 15 ° rise x 60mm extension |
| Headset | Zero-stack internal cup threadless, 15mm cone spacer |
| Seatpost | Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp |
| Saddle | Jamis ATB Youth |
| Pedals | MTB platform, hi-impact resin |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Black / 24-inch | 845436089218 | 07-3682BK | 210000199513 |
| Sky Blue / 24-inch | 845436089232 | 07-3684BL | |
| Violet Powder / 24-inch | 845436089249 | 07-3685VL | |
| Ninja Green / 24-inch | 845436089225 | 07-3683GN | 210000199514 |
