Details
SIDEWALK ADVENTURER

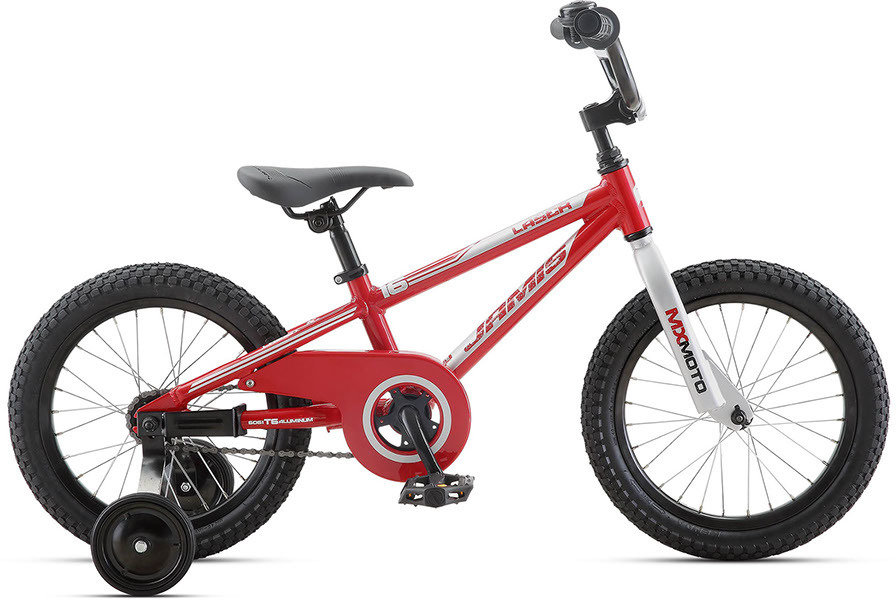

Everyone remembers their first bike; the combination of freedom and fun. That bike needs to be fun, comfortable and safe, which is why Laser 16 features a lightweight aluminum frame, removable training wheels, and BMX-style handlebars and saddle.
LIGHTWEIGHT ALLOY FRAME
Extra weight is the enemy of any bike. This is especially true for youth bikes, when the riders themselves are relatively light-weight. It’s tough to beat the cost-to-weight ratio of aluminum, which is why Laser 16 features a lightweight 6061 aluminum frame. This keeps the overall weight down, making the bike much more fun and easy to ride.
TRAINING WHEELS INCLUDED
When it comes to learning to ride a bike, building confidence is the name of the game. Laser 16 is equipped with training wheels, so young riders can build that confidence safely.
- Lightweight 6061 aluminum MX-moto frame design
- Tubular unicrown fork, MX Hi-Ten, straight blades
- Electro-plated black steel rims, steel front and Hi-Stop coaster brake rear hubs
- CST Dirt Knobbie tires
- BMX high-impact resin pedals
- Hi-Stop rear coaster brake
- BMX style handlebar with a safety bell
- Jamis BMX Jr. saddle

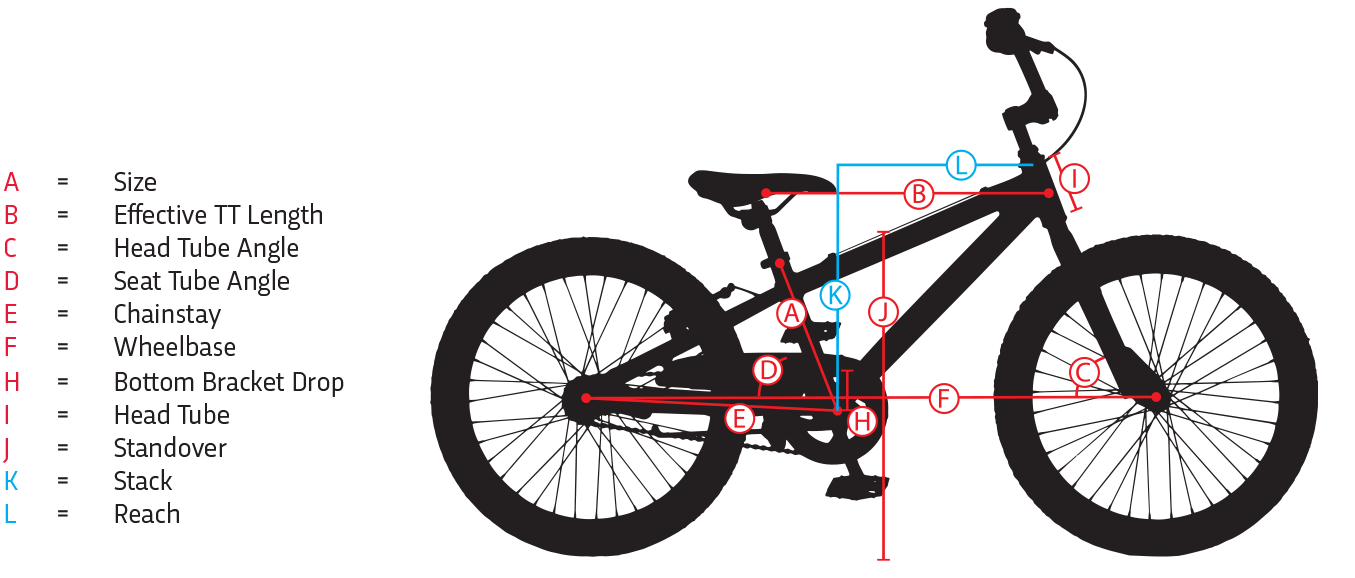

| SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | FORK RAKE | BB HEIGHT | HEADTUBE | STANDOVER | |
|---|---|---|---|---|---|---|---|---|---|---|
| LASER 16 | 8? B | 15.55 / 395 | 70° | 70° | 13.23 / 336 | 30.24 / 768 | 1.38 / 35 | 7.99 / 203 | 3.35 / 85 | 16.65 / 423 |
Specs
| Frame | Lightweight 6061 aluminum MX-moto frame design, includes chainguard and training wheels |
|---|---|
| Fork | Tubular unicrown, MX Hi-Ten,straight blades |
| Headset | Standard threaded type, 22.2mm. |
| Rims/Wheels | Electro-plated black steel 28H rims, steel front and Hi- Stop coaster brake rear hubs, 14G black electroplated spokes |
| Tires | CST Dirt Knobbies, 16 x 2.125” |
| Crankset | Cold-forged steel, electro-plated black finish, 3 1/2” arms, 28T chainring |
| Bottom Bracket | OPC bearing type, VP-B35 |
| Chain | KMC C410 |
| Handlebars | BMX style with safety bell |
| Tape/Grips | Kraton with flange |
| Stem | BMX alloy with front facing removable cap, 150mm quill |
| Brakes | Hi-Stop rear coaster brake |
| Pedals | BMX high-impact resin pedals |
| Saddle | Jamis BMX Jr. |
| Seat Post | Pillar, electro-plated black finish, 27.2 x 250mm with 31.8mm alloy clamp |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Black / 16-inch | 845436076881 | 07-3628BK | |
| Deep Blue / 16-inch | 845436089522 | 07-3692BL | |
| Victory Red / 16-inch | 845436076898 | 07-3629RD | 210000199502 |
| Ano Deep Blue / 16-inch | 845436082769 | 07-3662BL |
