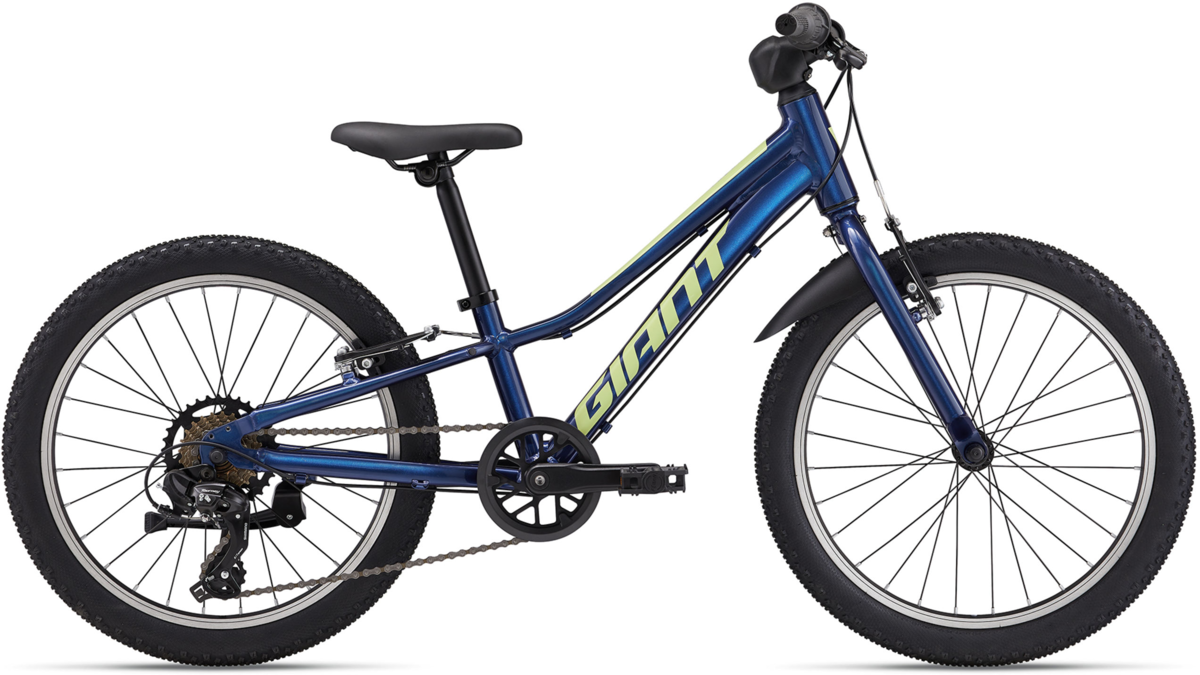

Giant Talon 20 Lite
Details
From neighborhood adventures to family trail outings, this built-for-kids mountain bike makes it easy for young riders to enjoy the bike life. The frame design and components inspire confidence and control as they develop their skills.
Off-road control
A shorter seat tube with a lower bottom bracket and standover height create a lower center of gravity with greater stability and maneuverability on dirt paths and trails. Select models come with a 30mm suspension fork for added control on bumpy terrain.
Kid-sized components
Smaller diameter handlebars (25mm) and short-reach brake levers offer better grip and control for smaller hands. Shorter cranks ensure smooth pedaling and prevent the pedals from hitting the ground while cornering.
All the accessories
A kickstand, mini-fender, stem pad protection, and a bell make Talon 20 a fun and easy bike for everyday rides around the neighborhood.
| Frame Size | One Size |
|---|---|
| Seat Tube Length (in/mm) | 8.9 / 226 |
| Seat Tube Angle (degrees) | 72.0° |
| Top Tube Length (in/mm) | 17.7 / 450 |
| Head Tube Length (in/mm) | 5.1 / 130 |
| Head Tube Angle (degrees) | 69.0° |
| Fork Rake (in/mm) | 1.5 / 38 |
| Trail (in/mm) | 2.3 / 58 |
| Wheelbase (in/mm) | 34.6 / 879 |
| Chain Stay Length (in/mm) | 14.8 / 376 |
| Bottom Bracket Drop (in/mm) | 1.2 / 30 |
| Stack (in/mm) | 17.4 / 442 |
| Reach (in/mm) | 12 / 305 |
| Stand Over Height (in/mm) | 18.2 / 462 |
| Handlebar Width (in/mm) | 20.5 / 521 |
| Stem Length (in/mm) | 2.4 / 61 |
| Crank Length (in/mm) | 5.1 / 130 |
| Wheel Size | 20" |
| Frame Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| One Size | 3'8" - 4'5" | 113 - 135 |
Specs
| Frame | ALUXX-grade aluminum |
|---|---|
| Fork | High-tensile steel, rigid |
| Rims | Giant Kids 20", alloy |
| Hubs | Nutted, 28h |
| Spokes | Stainless, 14g |
| Tires | Giant Junior Sport, 20x1.95", 22 tpi |
| Bottom Bracket | Semi-cartridge |
| Crankset | Alloy, 32t, 140mm |
| Shifters | Shimano REVOSHIFT, 1x7 |
| Rear Derailleur | Shimano Tourney |
| Cassette/Freewheel | 14x34 |
| Chain | KMC HV500 |
| Brakes | Alloy, linear pull |
| Brake Levers | Alloy, junior MTB |
| Handlebars | Giant Kids, alloy, 31.8mm, 10-degree rise, 60mm, custom taper design |
| Tape/Grips | Giant Junior, custom taper design |
| Stem | Forged alloy Ahead, 10-degree |
| Seatpost | Alloy, single-bolt, 27.2x250mm |
| Saddle | Explora Jr. |
| Pedals | Platform |
| Accessories & Extras | Bell, kickstand, fender, rear derailleur protector |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Eclipse / One Size | 04711291190306 | 1126002190 |
