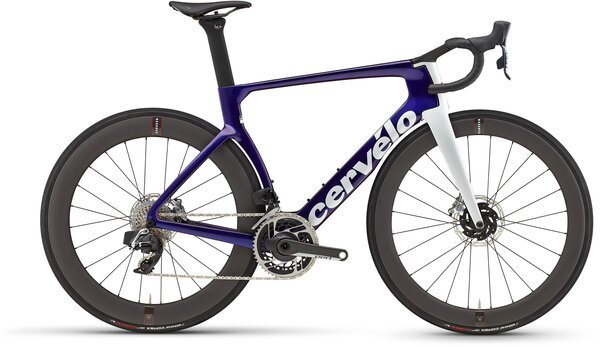

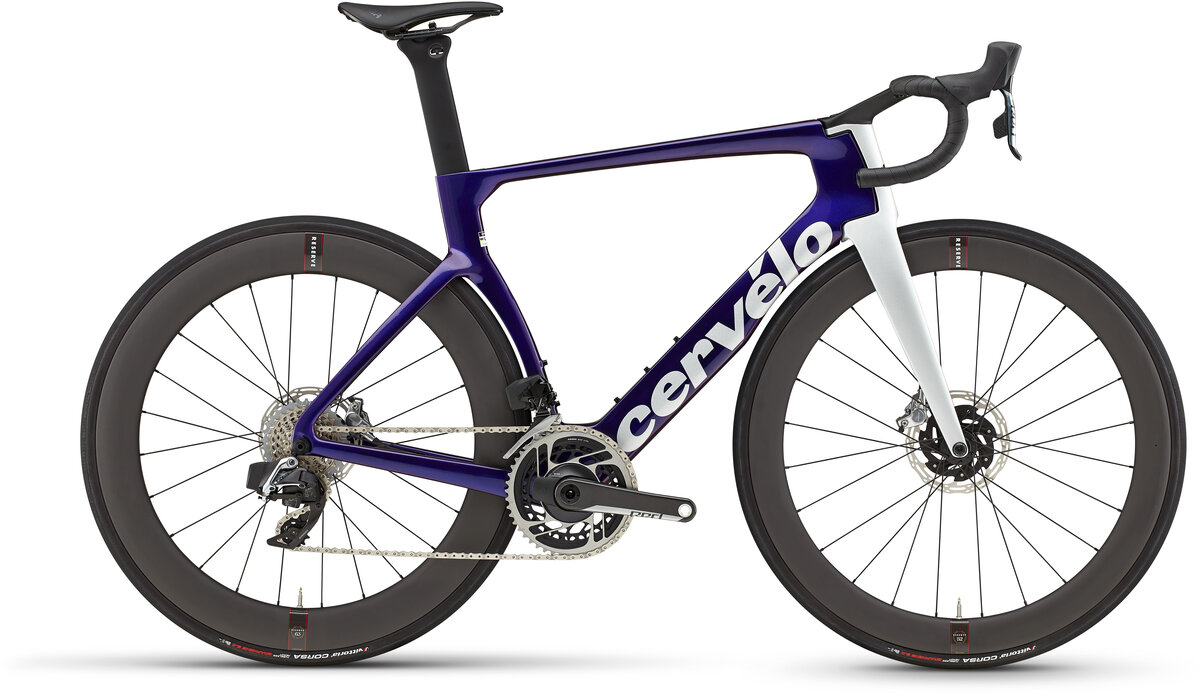

Cervelo S5 Red eTap AXS
$12,000.00
Details
The S5 prioritizes aerodynamic performance and stiffness, making it a platform preferred by the fastest sprinters in the world. You've no doubt noticed the now-iconic V-Stem. We optimized that shape to deliver the best possible performance in the wind, hid the cables inside, and made enough bar/stem/stack options to fit just about anyone. It'll clear 28mm tires, too so you can eke out even more aero advantage.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Reach (mm) | 367 | 376 | 384 | 392 | 401 |
| Stack (mm) | 496 | 519 | 542 | 565 | 588 |
| Head Tube Angle | 71° | 72° | 73° | 73.5° | 73.5° |
| Front Center (mm) | 579 | 580 | 581 | 588 | 604 |
| Bottom Bracket Drop (mm) | 72.5 | 72.5 | 70 | 70 | 67.5 |
| Head Tube Length (mm) | 69 | 87 | 109 | 130 | 157 |
| Top Tube Length (mm) | 520 | 535 | 550 | 565 | 581 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Standover Height (mm) | 707.5 | 729.2 | 747.4 | 775.3 | 805.9 |
| Trail (mm) | 57.1 | 57 | 57.1 | 57 | 57 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C |
| Fork Offset (mm) | 58 | 52 | 46 | 43 | 43 |
| Wheelbase (mm) | 973 | 974 | 975 | 982 | 999 |
| Chainstay Length (mm) | 405 | 405 | 405 | 405 | 405 |
Specs
| Fork | Cervélo All-Carbon, Tapered S5 Fork |
|---|---|
| Wheels |
Front: Reserve 52, 25.4 IW, Zipp ZR1 SS, 24H, centerlock, tubeless compatible Rear: Reserve 63, 24.4mm IW, Zipp ZR1 SS,12x142mm, XDR freehub, 24h, centerlock, tubeless compatible |
| Tires | Vittoria Corsa TLR G 700x28c |
| Bottom Bracket | SRAM DUB Ceramic, BBright |
| Crankset | SRAM Red AXS, 48/35T, DUB, with power meter |
| Shifters | SRAM Red AXS, 12 speed |
| Front Derailleur | SRAM Red AXS, 12 speed |
| Rear Derailleur | SRAM Red AXS, 12 speed |
| Cassette/Freewheel | SRAM Red, 10-33, 12 Speed |
| Chain | SRAM Red, 12 speed |
| Brakes | SRAM Red |
| Rotors | SRAM CLX R Centerlock |
| Handlebars | Cervélo HB14 Carbon |
| Stem | Cervélo ST35 Carbon |
| Headset | FSA IS2 1-1/8 x 1-3/8 |
| Seatpost | Cervélo SP20 Carbon |
| Saddle | Selle Italia NOVUS BOOST EVO SuperFlow Carbon |
| Accessories & Extras | Cervelo Handlebar Front Computer/Accessory Mount, Cervelo Rear Accessory Mount |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Sapphire/Ice / 48cm | 042677625995 | 0I0S5FRX2C48 | |
| Sapphire/Ice / 51cm | 042677626008 | 0I0S5FRX2C51 | |
| Sapphire/Ice / 54cm | 042677626015 | 0I0S5FRX2C54 | |
| Sapphire/Ice / 56cm | 042677626022 | 0I0S5FRX2C56 | |
| Sapphire/Ice / 58cm | 042677626039 | 0I0S5FRX2C58 | 210000189504 |
