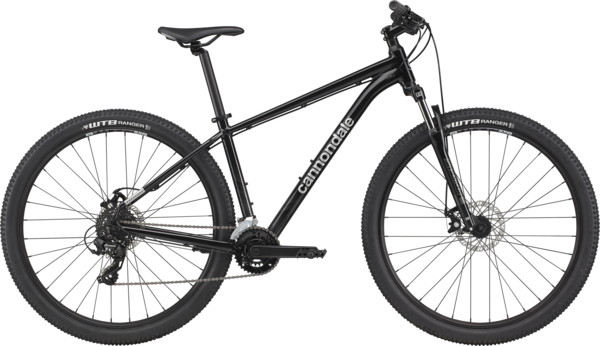

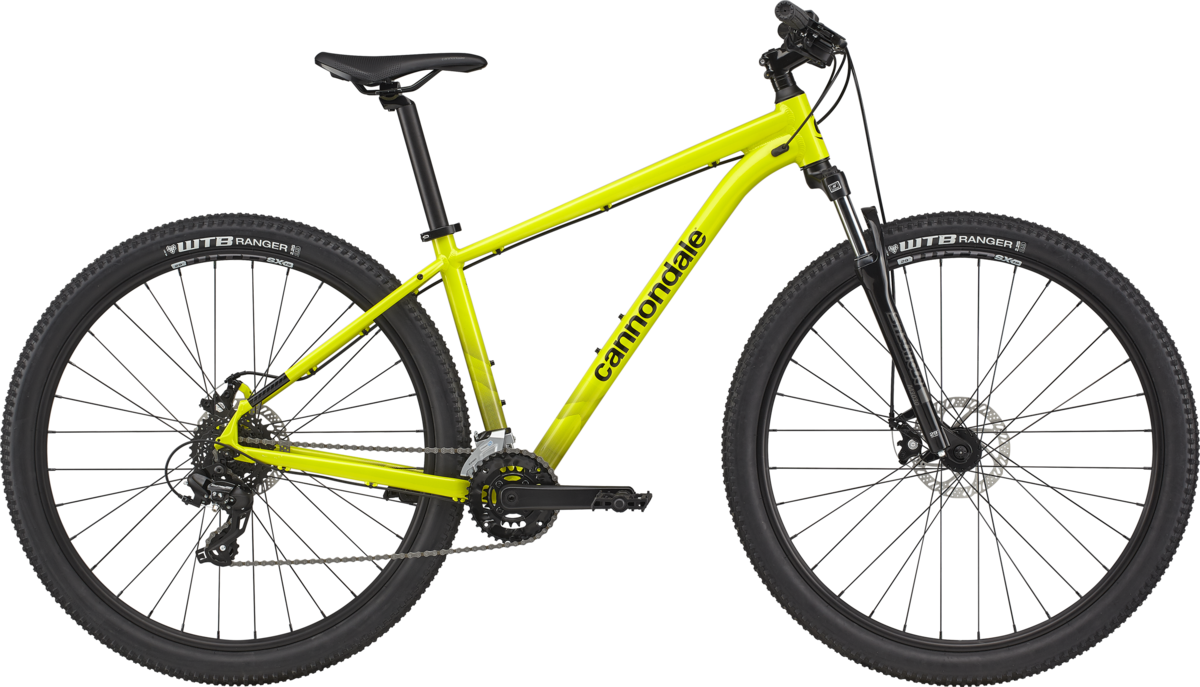

Cannondale Trail 8
$500.00 - $699.99
Details
Level Up.
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Highlights
- Light and durable SmartForm C3 Alloy frame
- SR Suntour M3030 suspension fork, 75mm travel
- 7-speed drivetrain w/ double chainring cranks / Tektro mechanical disc brakes
Where it thrives:
Low-impact trails, gravel roads, leisurely ride
What it's built for:
Handling, durability
Wheel size:
- Sizes X-Small – Small: 27.5-inch
- Sizes Medium – X-Large: 29-inch
| Bike Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube Length (cm) | 33 | 38.1 | 43.2 | 47 | 53.3 |
| Top Tube Horizontal (cm) | 53.5 | 57.7 | 60.9 | 63.4 | 65.9 |
| Top Tube Actual (cm) | - | - | - | - | - |
| Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Standover (cm) | 67.3 | 71 | 76.8 | 79.5 | 83.9 |
| Head Tube Length (cm) | 9.5 | 9.5 | 10.5 | 11.5 | 12.5 |
| Wheelbase (cm) | 105.4 | 109.8 | 114 | 116.6 | 119.2 |
| Front Center (cm) | 62.1 | 66.5 | 70.2 | 72.8 | 75.4 |
| Chain Stay Length (cm) | 44 | 44 | 44.5 | 44.5 | 44.5 |
| Bottom Bracket Drop (cm) | 6 | 6 | 6.5 | 6.5 | 6.5 |
| Bottom Bracket Height (cm) | 29.3 | 29.3 | 30.7 | 30.7 | 30.7 |
| Fork Rake (cm) | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 |
| Trail (cm) | 9.7 | 9.7 | 10.1 | 10.1 | 10.1 |
| Stack (cm) | 57.3 | 59.1 | 62.3 | 63.2 | 64.1 |
| Reach (cm) | 36.5 | 40.2 | 42.5 | 44.7 | 46.9 |
| Bike Size | Rider Height (in) |
|---|---|
| X-Small | 4'6" - 5'2" |
| Small | 5'1" - 5'4" |
| Medium | 5'4" - 5'8" |
| Large | 5'7" - 6'0" |
| X-Large | 5'11" - 6'3" |
Specs
| Frame | SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 |
|---|---|
| Fork | SR Suntour M3030, 75mm, coil, 42mm offset (27.5") 46mm offset (29") |
| Headset | Semi Integrated, 1-1/8" |
| Rims/Wheels | WTB SX19, 32h |
| Hubs |
Front: Formula, QR Rear: Formula QR |
| Spokes | Stainless Steel, 14g |
| Tires | WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound |
| Crankset | Prowheel, 36/22 |
| Bottom Bracket | Sealed bearing cartridge, square taper |
| Chain | KMC Z7, 7-speed |
| Front Derailleur | Shimano Altus, 34.9 clamp |
| Rear Derailleur | Shimano Tourney |
| Cassette/Rear Cogs | Sunrace, 11-34, 7-speed |
| Shifters | microSHIFT Thumb-Tap, 7-speed |
| Handlebars | 6061 Alloy Riser, 31.8mm, 25mm rise, 700mm |
| Tape/Grips | Cannondale Dual-Density |
| Stem | 6061 Alloy, 31.8, 8° |
| Brake Levers | Tektro |
| Brakes | Tektro cable-actuated disc, 160/160mm rotors |
| Pedals | Cannondale Platform |
| Saddle | Cannondale Stage 3 |
| Seat Post | Cannondale 3, 6061 Alloy, 31.6 x 350/400mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey / X-Small / 27.5-inch | 884603840948 | C26801M10XS | 210000194628 |
| Grey / Small / 27.5-inch | 884603840955 | C26801M10SM | 210000193277 |
| Grey / Medium / 29-inch | 884603840962 | C26801M10MD | 210000193281 |
| Grey / Large / 29-inch | 884603840979 | C26801M10LG | 210000193299 |
| Grey / X-Large / 29-inch | 884603840986 | C26801M10XL | 210000193278 |
| Highlighter / X-Small / 27.5-inch | 884603840993 | C26801M20XS | 210000193220 |
| Highlighter / Small / 27.5-inch | 884603841013 | C26801M20SM | 210000193221 |
| Highlighter / Medium / 29-inch | 884603841020 | C26801M20MD | 210000193738 |
| Highlighter / Large / 29-inch | 884603841037 | C26801M20LG | 210000193324 |
| Highlighter / X-Large / 29-inch | 884603841044 | C26801M20XL | 210000193222 |
