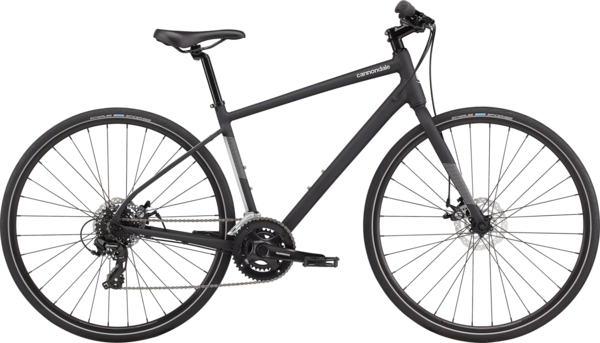

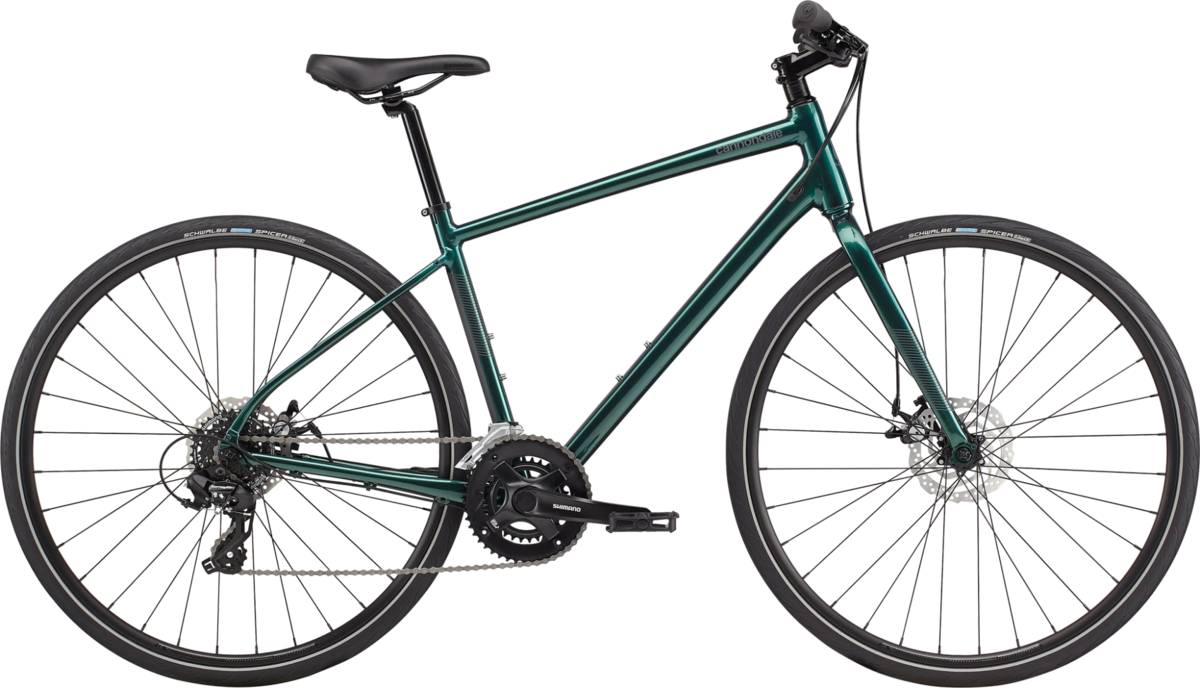

Cannondale Quick 5
$625.00 - $735.00
Details
Quick As You Like
A swift, sporty bike that’s perfect for getting a workout, city cruising, or just getting out and feeling good.
Highlights
- Lightweight aluminum frame w/ 360° reflective accents
- Shimano Tourney TX 14-speed drivetrain w/ disc brakes
- Integrated connectivity with the Cannondale App
Where it thrives
- In town, leisurely rides, on crowded streets
What it's built for
- Agility, visibility, comfort
| Bike Size | Small | Medium | Large | X-large | XX-Large |
|---|---|---|---|---|---|
| Seat Tube Length (cm) | 40 | 45 | 50 | 55 | 60 |
| Top Tube Horizontal (cm) | 56.7 | 58.3 | 59.8 | 61.2 | 62.8 |
| Top Tube Actual (cm) | - | - | - | - | - |
| Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover (cm) | 69.9 | 74.1 | 78.2 | 82.2 | 86.2 |
| Head Tube Length (cm) | 13.3 | 15.8 | 18.4 | 20.9 | 23.4 |
| Wheelbase (cm) | 105.3 | 106.9 | 108.6 | 110.2 | 111.8 |
| Front Center (cm) | 62.7 | 64.3 | 66 | 67.6 | 69.2 |
| Chain Stay Length (cm) | 43.5 | 43.5 | 43.5 | 43.5 | 43.5 |
| Bottom Bracket Drop (cm) | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| Bottom Bracket Height (cm) | 28.2 | 28.2 | 28.2 | 28.2 | 28.2 |
| Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Trail (cm) | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 |
| Stack (cm) | 55.4 | 57.8 | 60.2 | 62.6 | 65 |
| Reach (cm) | 39.8 | 40.6 | 41.4 | 42.2 | 43 |
| Bike Size | Rider Height (in) |
|---|---|
| Small | 5'2" - 5'7" |
| Medium | 5'5" - 5'10" |
| Large | 5'9" - 6'2" |
| X-Large | 6'0" - 6'5" |
| XX-Large | 6'4" - 6'9" |
Specs
| Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
|---|---|
| Fork | Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts |
| Headset | Integrated, 1-1/4"-1-1/8" |
| Axles | Quick release |
| Rims/Wheels | Cannondale Disc, double wall w/eyelet, 32h |
| Hubs | (F) Shimano HB-TX505 / (R) Shimano FH-TY505 |
| Spokes | Stainless Steel, 14g |
| Tires | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
| Crankset | Shimano Tourney, 46/30T |
| Bottom Bracket | Cartridge, square taper |
| Chain | KMC Z7, 7-speed |
| Front Derailleur | Shimano Tourney, 31.8 clamp |
| Rear Derailleur | Shimano Tourney |
| Cassette/Rear Cogs | Shimano HG200, 12-32, 7-speed |
| Shifters | Shimano M315 Rapidfire Plus, 7-speed |
| Handlebars | 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm |
| Tape/Grips | Cannondale Ergo Fitness |
| Stem | 6061 Alloy, 31.8, 8° |
| Brake Levers | Promax BL42 |
| Brakes | Promax mechanical disc, 160/160mm rotors |
| Pedals | Cannondale Fitness |
| Saddle | Cannondale Fitness Ergo Double Density |
| Seat Post | 6061 Alloy, 27.2 x 350mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Emerald / Small | 884603841686 | C31501M20SM | 210000193412 |
| Emerald / Medium | 884603841693 | C31501M20MD | 210000193418 |
| Emerald / Large | 884603841709 | C31501M20LG | 210000193411 |
| Emerald / X-Large | 884603841716 | C31501M20XL | 210000196377 |
| Emerald / XX-Large | 884603841723 | C31501M202X | 210000193141 |
| Matte Black / Small | 884603841631 | C31501M10SM | 210000195610 |
| Matte Black / Medium | 884603841648 | C31501M10MD | 210000193280 |
| Matte Black / Large | 884603841655 | C31501M10LG | 210000193260 |
| Matte Black / X-Large | 884603841662 | C31501M10XL | 210000193279 |
| Matte Black / XX-Large | 884603841679 | C31501M102X | 210000193142 |
