Black Ops SpecOp-29 Disc
$799.99
Details
- 6061 aluminum frame with reinforcing gussets at critical points, internal headset, mid-BB shell, and disc rear dropout
- 4130 Chromoly fork with disc mount
- 29" double-wall alloy rims with 14mm rear axle, disc-ready sealed bearing hubs, and stainless steel spokes
- 29" x 2.50" Maxxis Hookworm tires
- Single-speed drivetrain
- Three piece chromoly BMX cranks with sealed BB
- Black Ops SpecOp custom BMX saddle with anti-slip surface
- Black Ops SpecOp 4130 chromoly handlebar
- Rear disc-brake with 2-finger lever
- Black Ops rear pegs
- Black Ops custom 3-piece pad set
Suggested Rider Height:
- 64" / 5'4" and up
WEIGHTS:
- Bike Weight: 33 Lbs
- Rider Weight Limit: 250 Lbs

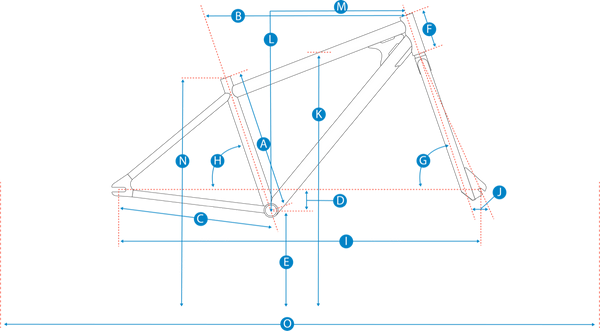

| KEY | mm | inch | |
|---|---|---|---|
| Seat Tube Length (BB Center to Top) | A | 430 | 16.9 |
| Top Tube Length (Effective) | B | 620 | 24.4 |
| Chainstay Length | C | 469 | 18.5 |
| BB Drop | D | 65 | 2.6 |
| BB Height (BB Center to Ground) | E | 305 | 12 |
| Head Tube Length | F | 125 | 4.9 |
| Head Tube Angle | G | 71.0° | 71.0° |
| Seat Tube Angle | H | 71.0° | 71.0° |
| Wheelbase | I | 1105 | 43.5 |
| Fork Offset | J | 40 | 1.6 |
| Standover Height* | K | 750 | 29.5 |
| Frame Stack | L | 610 | 24 |
| Frame Reach | M | 406 | 16 |
| Seat Tube to Ground | N | 715 | 28.1 |
| Overall Length | O | 1832 | 72.1 |
| Crank Length | 175 | 6.9 | |
| Handlebar Width | 762 | 30 | |
| Stem Length | 50 | 2 | |
| Seat Post Length | 350 | 13.8 |
Specs
| Frame | 6061 Alloy with Reinforcing Gussets |
|---|---|
| Fork | 1-1/8" Chromoly, Threadless, Straight Legs, (DISC COMPATIBLE) |
| Rims | 29", Double-Wall Alloy, 30 x 24mm, 36H x 14G |
| Hubs | Front Hub: Alloy, 6-Bolt Disc, 100mm Spacing, Sealed Cartridge Bearings, 3/8" Bolt-On Axle/Rear Hub: Alloy, 6-Bolt Disc, 110mm Spacing, Sealed Cartridge Bearings, 14mm Bolt-On Axle |
| Spokes | 14G Stainless Steel ED Blk with CP Brass Nipples (FD-290 - FND-289 / R-289 / N-12mm) |
| Tires | Maxxis Hookworm, 29 x 2.5" |
| Bottom Bracket | Sealed Cartridge Bearings, 41.2 O.D. x 19mm I.D. for MID BB Shell |
| Crankset | 3-Piece Cr-Mo Tubular Arms, 175mm |
| Chainrings | Alloy, 33T x 1/2" x 1/8" |
| Chain | K.M.C. B1H, 1/2" x 1/8", 98L |
| Brakes | Mechanical Disc with 160mm Rotor |
| Handlebars | Chromoly, BMX, 30" Wide x 6" Rise x 22.2 Clamp |
| Tape/Grips | Kraton Rubber, 130mm |
| Stem | Alloy, BMX, Threadless, 28.6 x 50mm x 22.2 Clamp W/4-Bolt Face Plate |
| Headset | 1-1/8" Semi-Integrated, Caged Bearings, 28.6 x 44 x 30mm |
| Seatpost | Alloy W/Integrated Clamp, 27.2 x 350mm |
| Saddle | Black-Ops Custom BMX, Steel Rails w/Grip Top |
| Pedals | FP 922, Alloy W/ Steel Spindle, 9/16" |
| Accessories & Extras | Pads: Black Ops 3-Piece Fade Pad Set, Pegs: Rear Axle Pegs, Steel, 38 x 110mm x 14mm, Chain Guard: Plastic, Removable, Smoked Clear |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Grey/Black Fade / One Size / 29-inch | 888571100035 | 671200 |
| Silver Flash / One Size / 29-inch | 888571100042 | 671201 |
